Root Cellar: The Complete Design, Build & Stocking Guide

Why Root Cellars Still Matter in 2026

The average American household wastes approximately $1,500 per year in spoiled food. A significant portion of that waste is fresh produce that rots in the refrigerator crisper drawer before it gets used. The root cellar solves this problem not by improving refrigeration technology but by working with soil physics — the ground, below the frost line, naturally holds a stable temperature between 32°F and 55°F year-round, depending on latitude and depth. This is not a rough approximation. It is a reliable, measurable, seasonally stable thermal environment that requires zero energy input.

Below 40°F and above 32°F, the cellular respiration rate of root vegetables drops to a fraction of its room-temperature pace. Respiration is the process that causes produce to age: starches convert to sugars, cell walls soften, moisture evaporates, and decay organisms gain a foothold. Cold slows all of it. High humidity prevents the moisture loss that causes shriveling. Together, they transform a root cellar from a simple cold room into a food preservation system that rivals any mechanical refrigerator for the specific category of crops it was designed to handle.

The economics are trivial: a root cellar costs $20–$4,000 to build (depending on design and scale), has zero operating cost, lasts decades, and can store the entire winter produce harvest for a household. For an off-grid homestead, it is the highest-ROI food storage investment available — higher than a freeze dryer, higher than a dehydrator, higher than a canning setup. It handles the highest volume of food at the lowest cost per stored pound.

The Science: Soil Temperature, Depth, and Climate

Soil temperature at depth is determined by three factors: latitude (which drives the annual temperature range), depth below the surface (which dampens seasonal variation), and soil composition (which affects thermal conductivity and moisture retention). The relationship between depth and temperature stability is well-documented in geothermal engineering:

At 10 feet of depth, seasonal variation is essentially eliminated — the temperature stays within 1–2 degrees of the annual mean year-round. At 6 feet, the range narrows to 3–6 degrees depending on climate. At 3 feet, there is still meaningful seasonal swing but the extremes are heavily dampened. For root cellar construction, 6–10 feet of earth cover (either by burial depth or hillside burial) provides the most stable thermal environment.

Soil composition matters significantly. Sandy soil has low thermal mass and drains quickly — it cools and warms faster than clay, which means a root cellar in sandy soil will have more temperature variation than one in clay soil. However, sandy soil also drains water away from the cellar, reducing flood risk and humidity problems. Clay soil has high thermal mass (more stable temperatures) but holds water — it requires careful waterproofing and drainage planning. The ideal root cellar site has loam: a balanced mix of sand, silt, and clay that provides moderate thermal stability with adequate drainage.

Groundwater is the single most important site-selection factor. A root cellar below the water table is a flooded root cellar. Before building, dig a test hole to the planned cellar depth during the wettest season (typically spring in most of the U.S.) and observe whether water seeps in over 24–48 hours. If it does, either choose a higher location or plan for a French drain system around the cellar perimeter.

Five Root Cellar Designs: From $20 to $4,000

Every root cellar design balances three variables: storage volume, construction complexity, and cost. The right choice depends on how much food you need to store, what your land offers (slope, drainage, existing structures), and what you're willing to build.

Design 1: Buried Barrel — The 30-Minute Root Cellar

This is the simplest food storage system that actually works. Bury a 30-gallon metal trash can at a 45-degree angle in a well-drained location — the lid should be at or slightly above ground level for access. The barrel should be buried deep enough that the bottom is below the frost line (3–5 feet in most northern climates). Pack the barrel with root vegetables layered in damp sand. Cover the barrel with 12–18 inches of earth, and pile straw bales or loose leaves over the lid for winter insulation.

How it works: the surrounding soil acts as thermal mass, keeping the interior at approximately the soil temperature at that depth. In zone 5 at 4 feet deep, that's roughly 42–46°F in winter. The sand around the vegetables maintains high humidity (90–95%), preventing shriveling. The angled position allows you to reach in and remove vegetables from the top without disturbing the rest. Condensation on the barrel walls provides additional humidity.

Capacity: a 30-gallon barrel holds approximately 40–60 pounds of root vegetables when packed in sand. That's roughly 40 pounds of carrots or 50 pounds of potatoes for a two-person household. Not a winter's worth for a large family, but enough for the highest-value crops (carrots, beets, celeriac) while lower-priority crops (squash, onions) are stored elsewhere.

In zones 3 and northern zone 4, add a second layer of insulation: 6–8 inches of loose straw or leaves on top of the barrel before adding earth cover. In zone 6 and south, the basic earth cover is usually sufficient — the frost line is shallower and the soil temperature at burial depth stays above 40°F naturally.

Design 2: Basement Corner Root Room

If you have an unfinished basement — especially one with stone or concrete foundation walls — converting a corner into a root room is often the most practical option. The foundation wall is already in contact with the earth at depth; you're isolating a cold pocket and insulating it from the warmth of the heated living space above.

Construction: choose the northeast or northwest corner of the basement (away from the furnace, which is typically in the south or southeast). Frame off a 4×6-foot or 6×8-foot area using 2×4 studs and plywood or cement board. Insulate the two interior walls (the ones facing the heated basement) with 2-inch rigid foam (R-10). Leave the two exterior walls (the foundation walls) uninsulated — they're your thermal connection to the earth. Insulate the ceiling between the root room and the heated space above with 4 inches of rigid foam (R-20).

Ventilation: this is what turns a cold basement corner into a functional root cellar. Run two 4-inch PVC pipes through the foundation wall to the outside: an inlet pipe with its opening 6 inches above the root room floor (cold air enters low), and an outlet pipe with its opening 6 inches below the ceiling (warm air exits high). The temperature difference between the cold inlet air and the warmer interior air creates a natural convection current that circulates air continuously. Add a simple sliding damper or removable plug on each pipe so you can adjust airflow seasonally.

The basement corner root room achieves temperatures 10–20 degrees colder than the rest of the basement when the vents are open and outdoor temperatures are below 40°F. In our test setup (an 8×8-foot basement room in zone 5), we measured interior temperatures of 36–40°F during November through March with outdoor temperatures between 15°F and 45°F. The insulation between the root room and the heated living space above is critical: without it, heat from above warms the room and defeats the purpose.

The floor should remain bare earth or concrete — do not add a wood subfloor or any insulating material on the floor. The earth connection through the floor is an important part of the thermal mass that keeps the room cool. If the floor is concrete, the thermal lag through the slab provides a stable temperature buffer. A dirt floor provides even better earth contact but may require a gravel base for drainage.

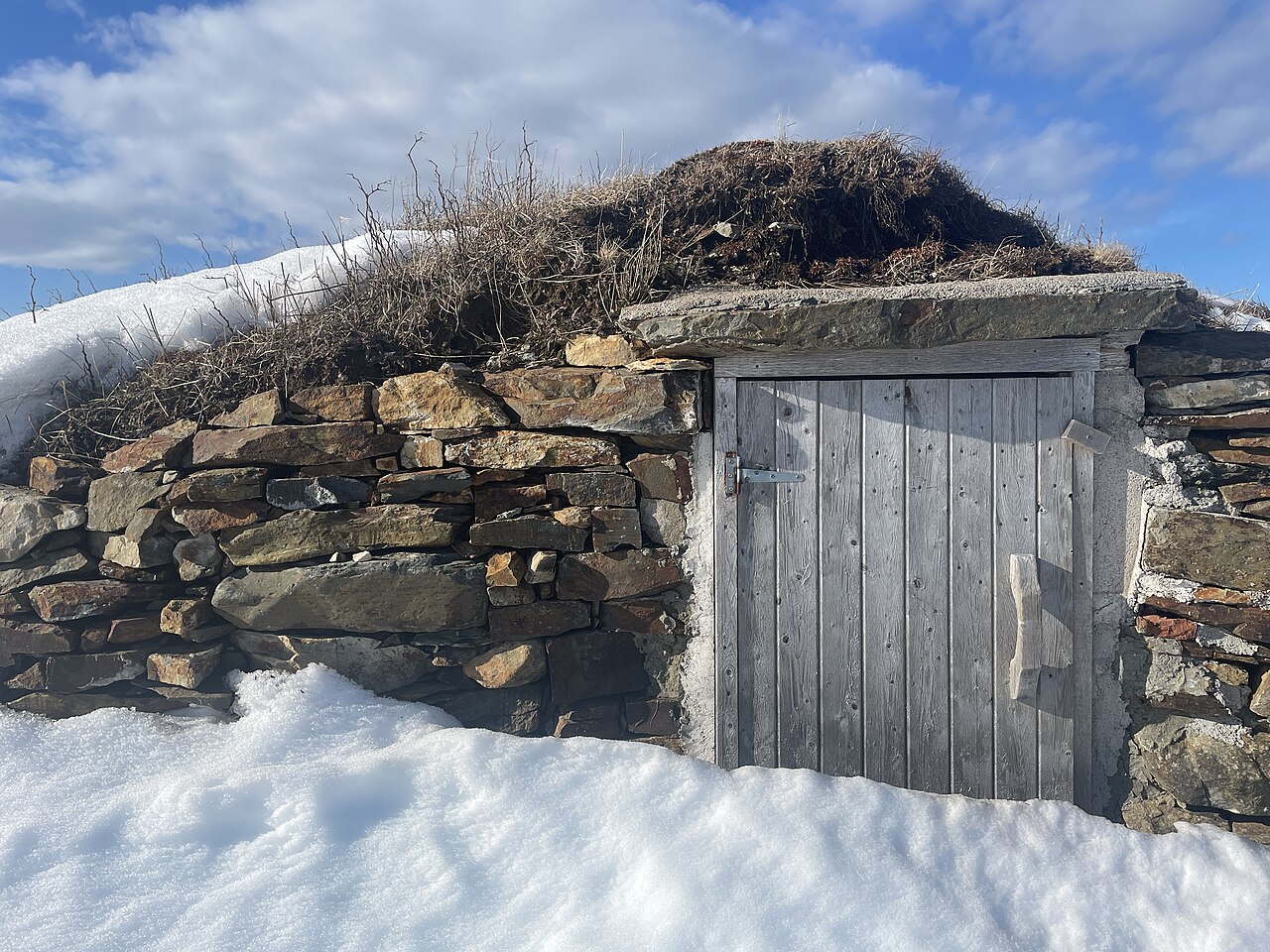

Design 3: Hillside Dugout — The Permaculture Standard

The hillside dugout is the most efficient root cellar design if your land has a suitable slope. By digging horizontally into a north-facing hill, you get earth insulation on three sides and the roof for free. The slope handles surface drainage naturally — water runs around the opening rather than into it. This is the design that traditional homesteaders in New England, Appalachia, and the upper Midwest built for generations, and it remains the best balance of capacity, cost, and thermal performance.

Dimensions: a practical dugout is 6 feet wide, 8 feet deep, and 7 feet tall at the entrance (sloping down to 5 feet at the back). This provides approximately 280 cubic feet of storage space, which holds 400–800 pounds of produce depending on packing density and shelving configuration. The excavation volume is roughly 4.5 cubic yards — manageable with a rented mini-excavator or a determined person with a shovel over 2–3 days.

Construction sequence:

1. Excavate the cavity into the north-facing slope. Cut slightly wider than the planned interior dimensions to allow for wall framing. The back wall should be at or below the frost line.
2. Install drainage: lay 4-inch perforated pipe along the floor perimeter, connected to a daylight drain that exits the hillside below the dugout. Cover the pipe with 6 inches of gravel. This is non-negotiable — without it, groundwater will flood the cellar during spring snowmelt or heavy rain.
3. Frame the walls: use 4×4 or 6×6 treated timber posts spaced 4 feet on center, with horizontal 2×6 planks between posts. Alternatively, use concrete masonry units (CMU / cinder block) for a more permanent structure. Timber is cheaper and easier; CMU lasts longer and provides better thermal mass.
4. Build the roof: span the top with 2×10 or 2×12 joists at 16-inch spacing, topped with 3/4-inch plywood or OSB. Apply a waterproof membrane (EPDM rubber or 6-mil polyethylene) over the roof deck, then backfill with 18–24 inches of soil. The soil cover is both insulation and structural load — compact it in layers.
5. Install ventilation: two 4-inch PVC pipes through the roof or back wall, one low (inlet) and one high (outlet). Add hardware cloth screens on exterior ends.
6. Build the door: a heavy insulated door is the weakest thermal point in any root cellar. Build a timber-framed door with 2-inch rigid foam core, weatherstripping, and a tight-sealing latch. The door should open outward (easier to push against snow) and have a threshold that slopes away from the entrance.

The hillside dugout achieves the most stable temperatures of any DIY root cellar design because it has maximum earth contact on all sides except the door. In our monitoring of a hillside dugout in zone 5 (6×8×7 feet, timber-framed, 24 inches of soil on the roof), interior temperatures stayed between 34°F and 40°F from November through March, even when outdoor temperatures ranged from -5°F to 50°F. The 18-month temperature log showed only three instances where the interior exceeded 42°F — all during unseasonably warm February days when the vents were inadvertently left open.

Design 4: Earth-Bermed Structure — The Premium Build

An earth-bermed root cellar is a purpose-built, freestanding structure that is partially or fully buried and then covered (bermed) with earth on three or four sides. Unlike the hillside dugout, it does not require a slope — you build it anywhere on level ground and create your own earth cover. This is the most expensive option but also the most versatile: it can be any size, any shape, and it provides the highest storage capacity of any DIY root cellar.

Typical dimensions: 8×10 feet interior, 7 feet ceiling height. Walls are concrete block (CMU) or poured concrete with waterproofing on the exterior. The roof is a reinforced concrete slab or heavy timber structure with 3–4 feet of earth cover. A heavy insulated door and two ventilation pipes complete the system. Total interior volume: approximately 560 cubic feet, with storage capacity of 600–1,200 pounds.

Waterproofing is the most critical element of an earth-bermed design. Unlike a hillside dugout where natural slope drains water away, an earth-bermed structure on level ground must manage water from all directions. Apply a waterproof membrane (peel-and-stick bitumen or liquid-applied rubberized coating) to all exterior walls and the roof deck before backfilling. Install a perimeter French drain (4-inch perforated pipe in gravel, daylighted to a lower point on the property) around the entire structure. This drain is the difference between a dry cellar and a flooded one.

The earth berm itself should be shaped to shed water away from the structure: a gentle dome or peaked shape over the roof, with side slopes of at least 3:1 (horizontal:vertical). Plant the berm with grass or ground cover to prevent erosion. Over time, the berm settles — plan to add 6–12 inches of additional soil after the first year of settlement.

Design 5: Well or Cistern Conversion

If your property has a decommissioned stone-lined well or old cistern, you may already have the ideal root cellar structure. Stone-lined wells maintain natural earth insulation on all sides, natural humidity from the surrounding soil, and typically sit at the ideal depth (8–20 feet) for root cellar temperatures. The conversion is straightforward: verify structural integrity, add shelving, install an insulated cover, and begin stocking.

The key advantage is that the well or cistern is already at depth — no excavation required. The stone lining provides natural humidity regulation (stone absorbs and releases moisture slowly, maintaining the 85–95% humidity range). The cylindrical shape maximizes volume relative to surface area, which minimizes temperature variation. A 4-foot-diameter, 12-foot-deep well provides approximately 150 cubic feet of storage — roughly 200–300 pounds of produce on simple wooden shelves hung from the walls.

Critical safety step: before using any old well as a root cellar, have the stone lining inspected for structural integrity. Loose stones, deteriorating mortar, or shifting walls are a collapse hazard. If the well is deeper than 15 feet, install a rope ladder or permanent ladder for access — reaching down from the top is not safe for regular stocking and retrieval. Also verify that the well was properly decommissioned — if it was filled with concrete or gravel, it's not usable as a root cellar.

Ventilation Engineering: The Physics of Passive Airflow

Ventilation is the most misunderstood aspect of root cellar design. Many builders focus on insulation and excavation but neglect ventilation, resulting in a cellar that's the right temperature but has stagnant, humid air that promotes mold growth and accelerates spoilage. Proper ventilation does three things simultaneously: it removes excess heat when outdoor temperatures are cold, it exchanges stale air for fresh air (reducing ethylene concentration and CO₂ buildup), and it regulates humidity by allowing moist air to escape and drier air to enter.

The driving force for passive root cellar ventilation is the stack effect: cold, dense air enters through a low inlet pipe and pushes warmer, lighter air up and out through a high outlet pipe. The strength of this effect depends on the temperature difference between the inlet air and the cellar interior, and on the vertical distance between the inlet and outlet openings. The greater both of these factors, the stronger the airflow.

Target: 0.5–1.0 air changes per hour during cold weather. This is enough to remove excess heat and ethylene without drying out the stored produce. More than 1.5 air changes per hour will lower humidity below the 85% threshold and cause vegetables to shrivel.

Pipe sizing: for a cellar up to 400 cubic feet, use two 4-inch PVC pipes. For 400–800 cubic feet, use two 6-inch pipes. The inlet and outlet should be the same diameter. Use smooth-walled PVC rather than corrugated pipe — corrugated pipe creates turbulence and reduces airflow by 20–30%. Position the inlet pipe 6 inches above the floor and the outlet pipe 6 inches below the ceiling. This maximizes the effective stack height.

Seasonal vent management:

Install a simple sliding damper on each vent pipe: a piece of sheet metal or plywood that slides in a groove cut into the pipe. This allows precise adjustment of airflow. A $10 min/max thermometer inside the cellar tells you when to open or close — if the temperature rises above 42°F, open the vents wider. If it drops below 32°F, close the inlet partially.

Crop-by-Crop Storage Matrix

Not all crops store at the same temperature and humidity. A single root cellar can accommodate multiple storage zones if you understand the requirements and plan your layout accordingly. Here is the complete matrix:

Humidity Management: The Overlooked Variable

Temperature gets all the attention in root cellar design, but humidity is equally important. Root vegetables stored at 35°F and 60% humidity will shrivel and lose 20–30% of their weight within two months through evaporation. The same vegetables at 90% humidity retain their firmness and weight for four to six months. The difference between a successful winter of storage and a bin of desiccated, rubbery carrots is almost always humidity, not temperature.

To raise humidity: the simplest method is a wet floor. Pour 1–2 gallons of water on a bare earth or concrete floor and it will evaporate slowly, raising the relative humidity by 10–20%. Repeat as needed (typically every 1–2 weeks). For a more controlled approach, fill a bucket with wet sand and place it in the cellar — the large surface area of the sand provides steady evaporation over 2–3 weeks. Pack root vegetables in damp sand or sawdust — the packing medium maintains localized humidity around each vegetable.

To lower humidity: if humidity exceeds 95%, condensation forms on walls and produce, creating conditions favorable for mold and bacterial rot. Increase ventilation by opening the outlet vent wider. Place a tray of quicklime (calcium oxide) or silica gel in the cellar — these materials absorb excess moisture from the air. Spread a thin layer of straw on the floor — it absorbs excess surface moisture and provides a dry surface for stored produce.

Measuring humidity: a digital hygrometer costs $10–$15 and gives you a precise reading. Analog hygrometers are less accurate but cheaper. Check humidity every time you check temperature — they're equally important. If you don't have a hygrometer, the condensation test: if you see water droplets on the walls or ceiling, humidity is above 95%. If stored vegetables feel dry and rubbery after two weeks, humidity is below 80%. The target range is 85–95%.

Harvesting and Stocking: The Practices That Determine Success

How you harvest and prepare produce for storage is as important as the cellar itself. A perfect root cellar cannot save poorly harvested produce, and a mediocre cellar can perform well with properly prepared crops.

Timing: harvest root vegetables after the first light frost but before the first hard freeze. A light frost (28–32°F) actually improves flavor in carrots, parsnips, and turnips by converting starches to sugars — this is a documented biochemical response to cold stress. A hard freeze (below 28°F) damages cell walls and ruins storage life. The window between these two events is your harvest window. In zone 5, that's typically late October to early November.

Potatoes are the exception: they should be harvested before any frost, as frost damages the tubers and reduces storage life. Dig potatoes when the foliage has yellowed and died back naturally. Leave them on the soil surface for 2–3 hours to dry (not in direct sun), then move to a curing area (55–60°F, 85–90% humidity) for 10–14 days to allow the skin to toughen and minor wounds to heal.

Winter squash should be harvested when the rind is hard (you can't puncture it with a fingernail) and the stem is beginning to dry and turn brown. Leave 2–3 inches of stem attached — the stem acts as a seal against rot entry. If the stem breaks off during harvest, that squash should be eaten first, not stored. Cure squash at 75–80°F for 10 days before moving to the root cellar's warm zone.

Handling: never wash root vegetables before storage. Washing removes the natural protective coating on the skin and introduces moisture that promotes rot. Brush off loose dirt but leave the skin intact. Trim tops to 1 inch above the root (for beets and turnips) or remove entirely (for carrots and parsnips), but do not cut into the root flesh — any cut is an entry point for decay organisms.

Selection: store only undamaged produce. A single nicked, bruised, or insect-damaged vegetable will rot and spread decay to surrounding vegetables. Inspect each item at the cellar door: if it's bruised, cut, or soft, eat it now or process it (freeze, dehydrate, can) rather than storing it. The produce that goes into the cellar should be your best — the damaged stuff gets eaten first, not stored.

Monthly maintenance: check the cellar once a month. Pull out each crate or bin, inspect every item, and remove anything that's softening, showing mold, or sprouting aggressively. One hour of sorting in December saves a bin of carrots in February. This is not optional — it's the single most important ongoing task in root cellar management.

Shelving and Layout: Maximizing Storage Efficiency

How you organize the interior of a root cellar determines both how much you can store and how accessible each crop is. The key principles:

Zone by temperature and humidity need. The coldest area is near the floor in the center of the cellar (farthest from the door). This is where carrots, beets, parsnips, and turnips go — packed in damp sand in wooden crates or bins. The warmest area is near the door and on upper shelves — this is where squash and (in larger cellars) a separate section for apples goes. The driest area is near the ventilation outlet — this is where onions and garlic hang, as they need lower humidity (60–70%) than root crops.

Use wooden crates, not plastic bins. Wood breathes and allows air circulation around stored produce. Plastic bins trap moisture and create pockets of high humidity that promote rot. Build simple wooden crates from scrap lumber: 12×18×10 inches is a practical size that fits standard shelving and holds 15–20 pounds of root vegetables. Stack crates with 2–3 inches of space between them for air circulation.

Shelving material: use pressure-treated lumber or naturally rot-resistant wood (cedar, black locust) for shelving. Untreated pine will rot within 2–3 years in the humid environment. Space shelves at 12–14-inch intervals to accommodate crates. Leave 6 inches of clearance between the top shelf and the ceiling for air circulation.

Pests, Problems, and Troubleshooting

Year-Round Root Cellar: Beyond Winter Storage

A root cellar is not just a winter storage room. With proper management, it serves multiple functions throughout the year:

Spring (March–May): the last stored crops from winter (potatoes, carrots, squash) are being consumed. The cellar temperature begins to rise as soil warms — keep vents open at night to maintain cool temperatures as long as possible. Use this period to clean and prepare for next fall's harvest: remove old shelving, sweep the floor, inspect for structural damage, and repair any winter wear on the door or vents.

Summer (June–August): the cellar naturally transitions to a cool pantry. Interior temperatures typically rise to 50–60°F — too warm for long-term root storage but ideal for short-term storage of summer produce (tomatoes, peppers, fresh herbs), curing onions and garlic, and storing opened jars of preserved food. The cool, dark environment is excellent for storing fermented foods (sauerkraut, kimchi, pickles) that need cool temperatures to slow fermentation.

Early fall (September–October): begin pre-cooling the cellar by opening both vents at night when outdoor temperatures drop below 40°F. This is the most critical period: you want the cellar at or below 40°F before harvest begins. A warm cellar at harvest time dramatically reduces storage life. Start stocking as crops come in, beginning with the hardiest varieties (carrots, beets, parsnips) and adding more sensitive crops as temperatures drop.

Late fall / winter (November–February): the cellar is at its peak performance. Manage ventilation actively, check produce monthly, and adjust humidity as needed. The deep winter months are when the root cellar earns its keep — providing fresh vegetables from October's harvest when the ground is frozen solid and the grocery store prices on fresh produce are at their annual peak.

Final Verdict
